| Coin catalogue section: | Nagidos, Bronze coins |
| Coin corpus datasets: | Nagidos, Bronze coins |
Box plots1 of individual coin types and basic descriptive statistics are presented in Figure 1 and Table 1 (Std. Dev. denotes the standard deviation and IQR the interquartile range), respectively. These results indicate that the weight standard of Type 6.3 is approximately three times that of Type 6.1 and twice that of Types 6.2 and 6.4, which are, however, represented by small numbers of coins.
Figure 1: Box plots
| Type | Count | Mean | Median | Std. Dev. | IQR |
|---|---|---|---|---|---|
| 6.1 | 17 | 1.03 | 0.96 | 0.26 | 0.39 |
| 6.2 | 3 | 1.37 | 1.32 | 0.24 | 0.36 |
| 6.3 | 14 | 3.08 | 3.18 | 0.39 | 0.52 |
| 6.4 | 3 | 1.53 | 1.50 | 0.07 | 0.10 |
Table 1: Basic descriptive statistics of coin types
Figure 2 presents relative frequency histograms of individual types, i.e. the bars represent the relative frequencies of observations ranging from 0.60 to 3.60 g in increments of 0.20 g. Cumulative distributions are shown in Figure 3.

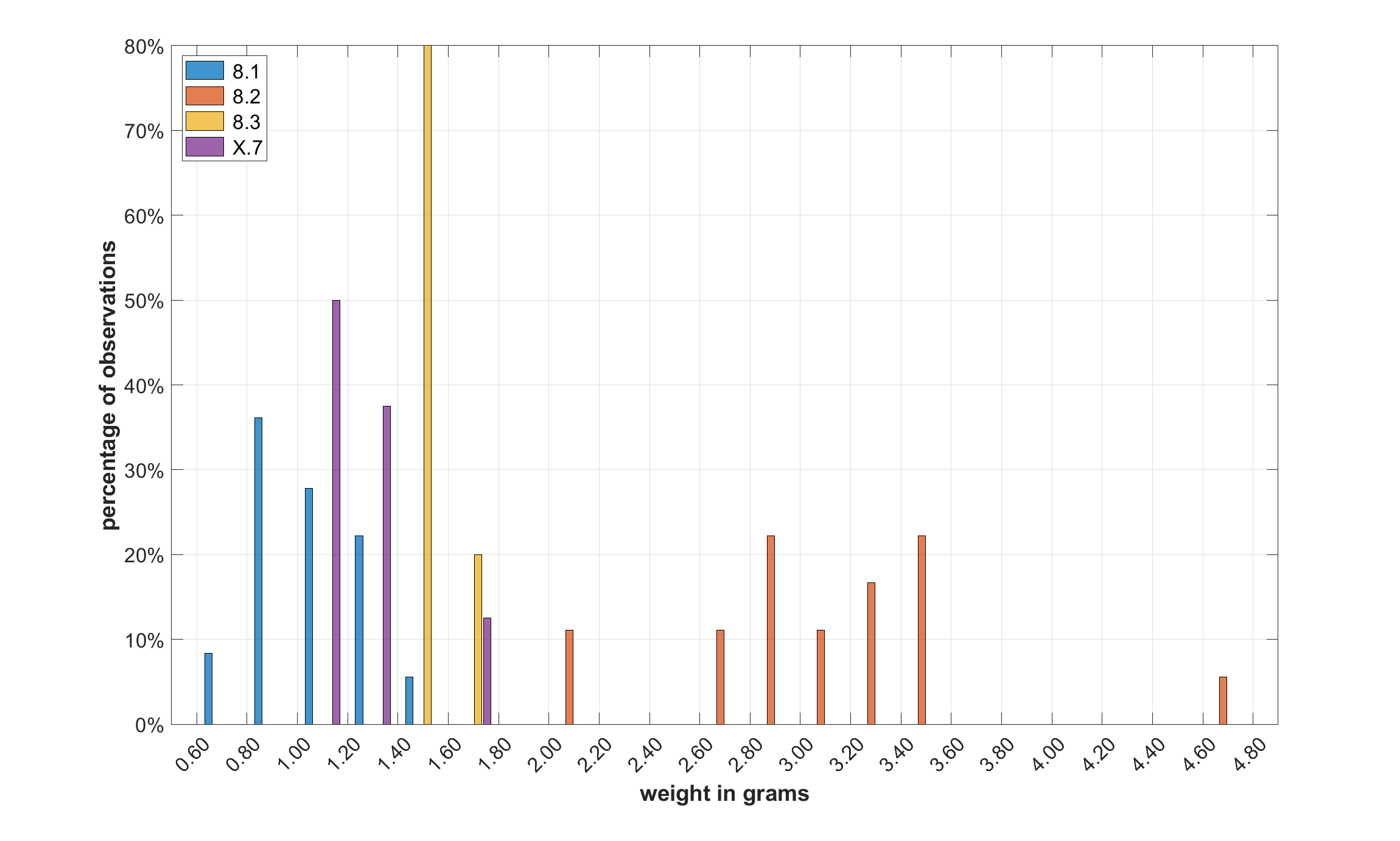

Figure 2: Relative frequency histograms

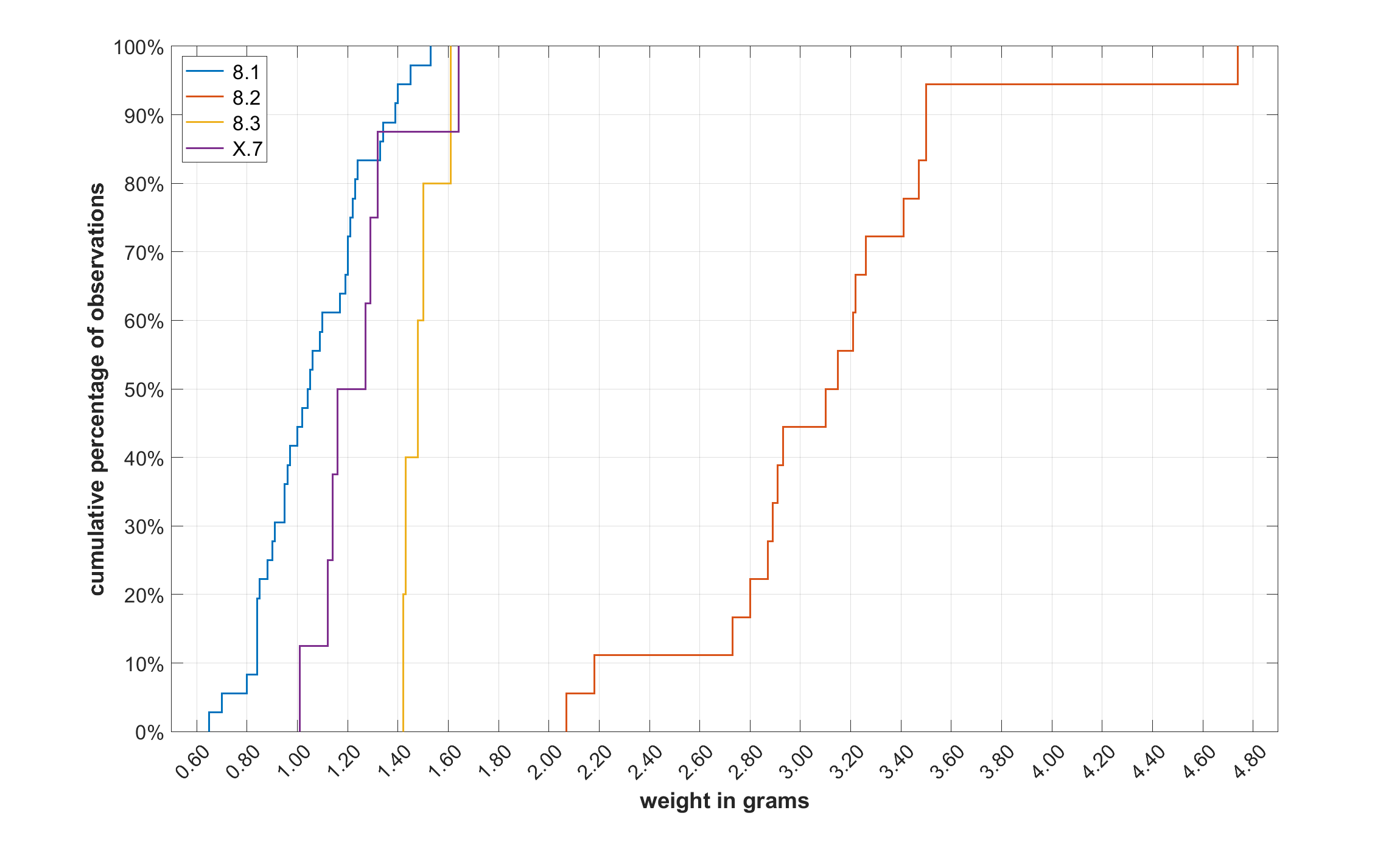

Figure 3: Cumulative distributions
1The bottom and top of each box are the 25th and 75th percentiles of the dataset, respectively (the lower and upper quartiles). Thus, the height of the box corresponds to the interquartile range (IQR). The red line inside the box indicates the median. Whiskers (the dashed lines extending above and below the box) indicate variability outside the upper and lower quartiles. From above the upper quartile, a distance of 1.5 times the IQR is measured out and a whisker is drawn up to the largest observed data point from the dataset that falls within this distance. Similarly, a distance of 1.5 times the IQR is measured out below the lower quartile and a whisker is drawn down to the lowest observed data point from the dataset that falls within this distance. Observations beyond the whisker length are marked as outliers and are represented by small red circles.
